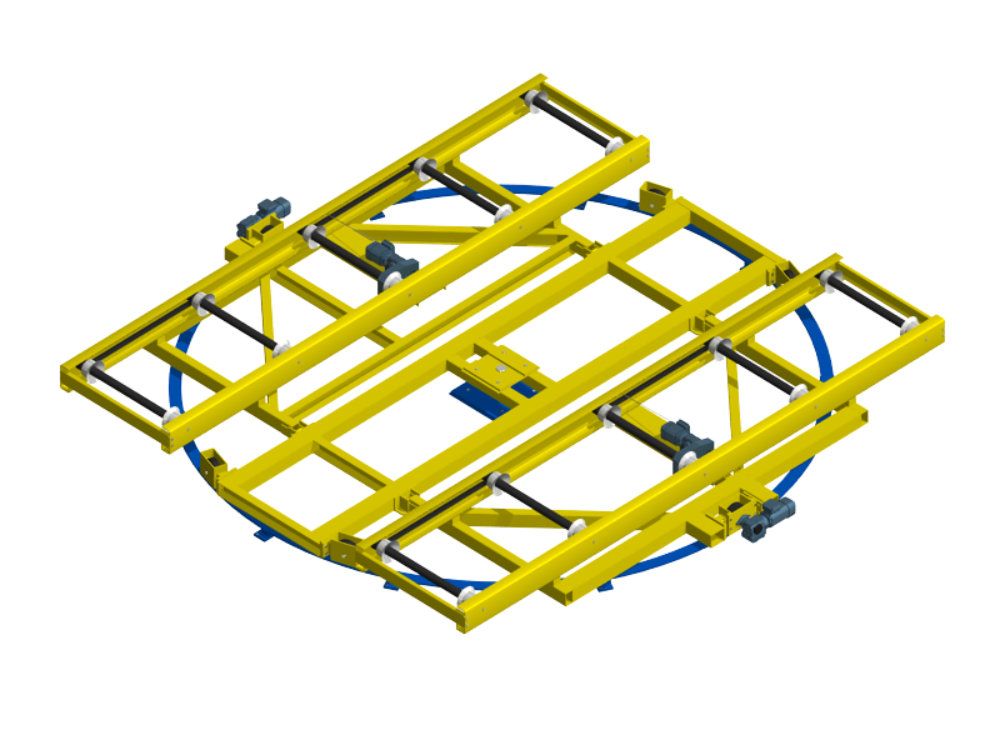

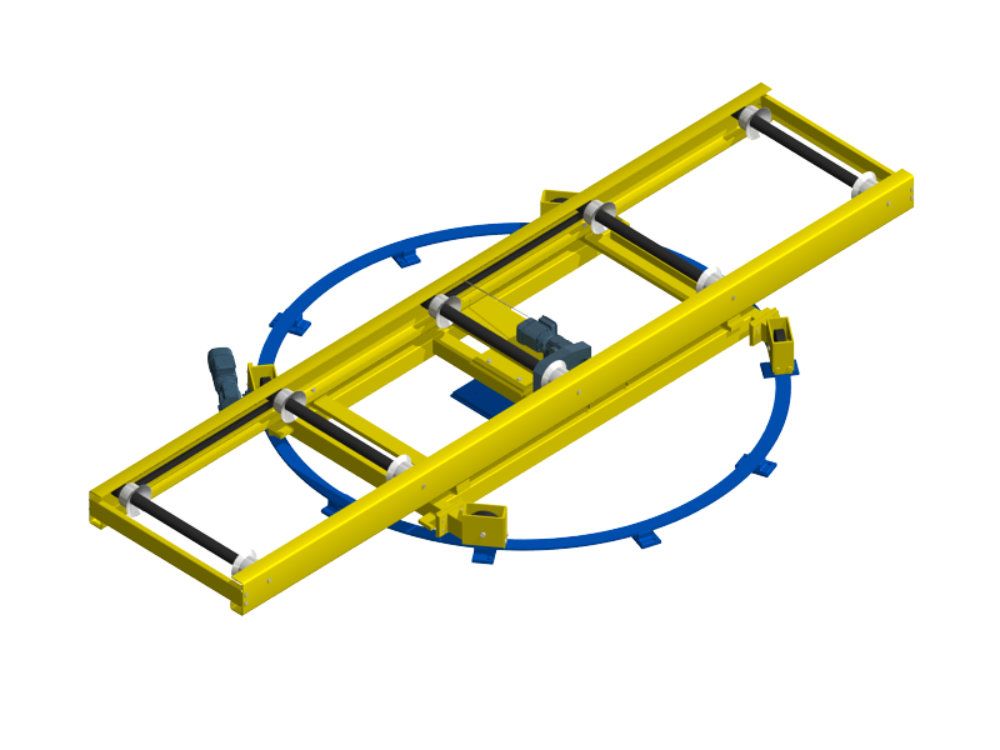

Pivoting tables are especially well adapted when your flow must be deflected, and skids has to remain on the same type of conveyor. Thanks to their customization, our rotation tables allow you to plan your logistics as accurately as possible.
Technical characteristics
The custom design is as accessible as the standard product, making our rotation tables particularly economical. Their characteristics can be specific to each project and you can define following elements:
| Conveying height | 400 to 800 mm |
|---|---|
| Rotation | from 0 ° to 270 ° (360 ° optional) |
| Payload | from 20 to 4000 kg |
| Cycle time | 6 seconds for 90 ° for a maximum cycle time of 90 skids / hour |
| On board | Roller or chain conveyor |
| Surface treatment | Fix parts painted in blue RAL 5010 and moving parts painted in yellow RAL 1021 |
| Options | Fixed stoppers, guides, adjustable sensor supports, automation, safety, anti-fall, low profile version (300 mm and below) |
Our turn tables are ideal for the logistics of skids, palettes and car components (seat, wheels, etc.).
Interested in this product? Contact us to talk together about your entire project.
