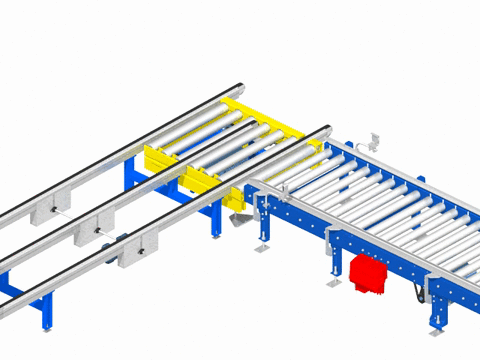

Roller orthogonal deviation table

Deflection tables are essential when your flow must be deflected by 90 °.

Your pallet is then transferred from a chain conveyor to a roller conveyor or vice versa.

Many features of our Pop-ups are customizable: you can plan your logistics as accurately as expected.

Technical characteristics of our Pop-up Tables

A tailor-made product at the standard price? This is possible with our deflection tables, which are particularly economical. For each project, most of their characteristics are modifiable:

Conveying height 400 to 800 mm
Lifting stroke 80 mm is standard, but up to 250 mm optional (pneumatic)
Payload 20 to 2000 kg
Lifting cycle time (electrical) Lifting cycle time (electrical) 2 seconds, ie a maximum cycle time of 280 Europallets/hour
Standard are the rollers are moving up and down As an option, can the chain be actuated
Energy Pneumatic or Electric
Surface treatment Painted or galvanized
Options Intermediate stopper, adjustable sensor supports, automation

Roller orthogonal deviation table

Reliable and robust, our deflection tables can operate in the most extreme conditions. They are particularly recommended for the logistics of wooden pallets, skids and car components (seat, wheels, engine, etc).

Do you want to equip your production unit? Contact us to talk about your project together.
