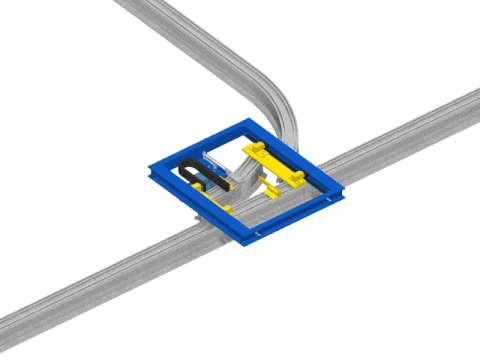

Switch junction for EMS

In case of overhead or inter-shop logistics, the transport unit must be able to go to several points of loading and unloading.

In order to change direction, switch junctions are installed to create a network.

The transport units then control the switch junction thanks to centralizes control system to switch to expected direction according to their mission.

Technical characteristics

You have the option to install switches in your logistics to the right or left. Here are the characteristics:

Permissible axle weight in the switch 1000 kg maximum
Direction of the switch junction Straight and left
OR
Straight and right
OR
Right and left
Travel speed of the transport unit in the switch junction 30 m/min maximum
Time to change position 2 seconds
Alignment quality +/- 1 mm
Surface treatment Painted or galvanized

Our EMS switch junctions are designed to operate under the most severe conditions. They are suitable for all overhead and inter-shop logistics.

You want to equip yourself? Contact us to talk about your project together.
