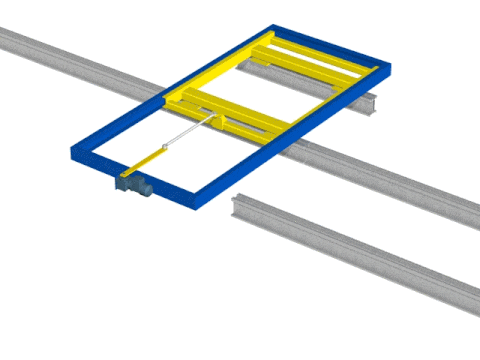

EMS Shifting station

Logistics often have parallel flows with exchanges in compact environments.

In order to change direction without disturbing the cycle times, our transfer units are installed in the network.

The transport units then control the transfer unit in order to be redirected according to their mission.

Technical characteristics

Our shifting transfer units are a standard product but can be customized at no additional cost, making them economically attractive. You can change the following characteristics:

Permissible weight in the transfer unit 2000 kg maximum
Transport unit envelope Size Maximum 3000 x 2000 (L x W)
Number of rails on the moving part 2 or 3 rails
Travel speed of the transport unit in the transfer unit 20 m/min maximum
Position change time 2 to 5 seconds
Stop accuracy +/- 1 mm
Surface treatment Painted or galvanized
Option Motorized guiding on floor to shift fast without swinging.

Our EMS shifting units, reliable and robust, fit perfectly with all overhead and inter-building logistics.

Interested in this product? Contact us to talk about your project together
