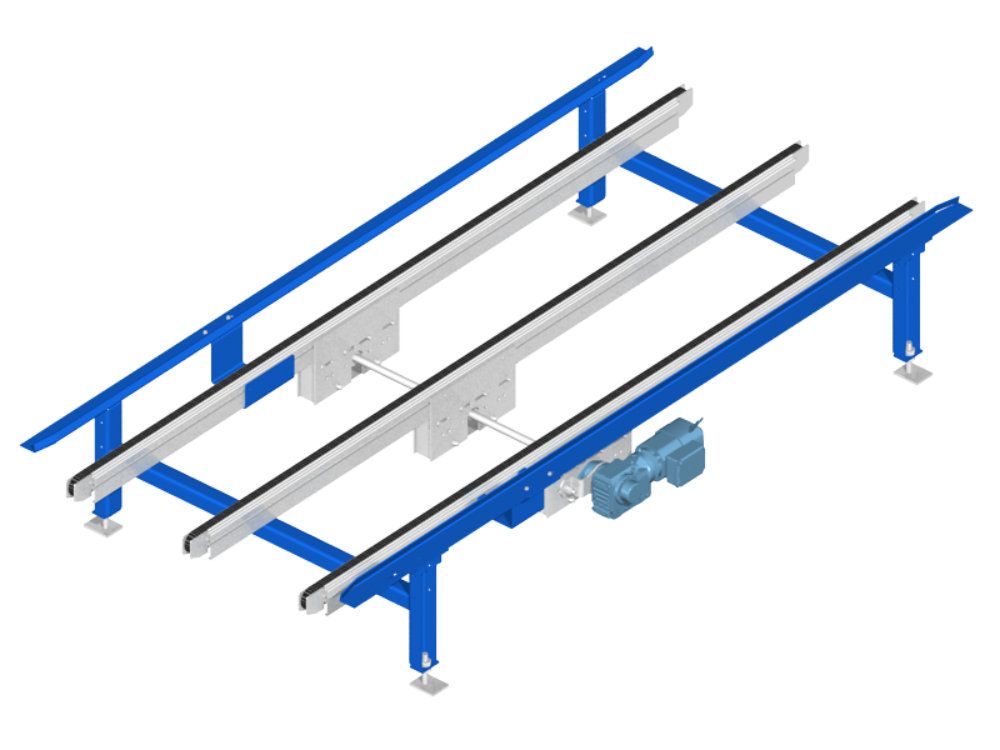

Chain conveyors are used in perpendicular orientation then roller conveyor, in the case of long straight lines and in the case of skids handling.

Our chain conveyors are customizable to allow you to optimize your logistics as accurately as possible.

Moreover, some models can accumulate loads in case of metal or plastic containers.



Technical characteristics of our chain conveyors

Standard or customized product? It depends on your needs but in both cases our chain conveyors are very competitive. The characteristics of our chain conveyor will adapt to your project:

Width of the pallet From 400 to 1500 mm
Conveyor length From 400 to 18000 mm
Conveying height From 400 to 800 mm
Maximum payload per pallet/skid From 20 to 2000 kg
Maximum load on a single conveyor Up to 6000 kg
Conveyor speed with VFD 24 m/min, equivalent to maximum 300 europallets/hour
Number of strands From 2 to 7

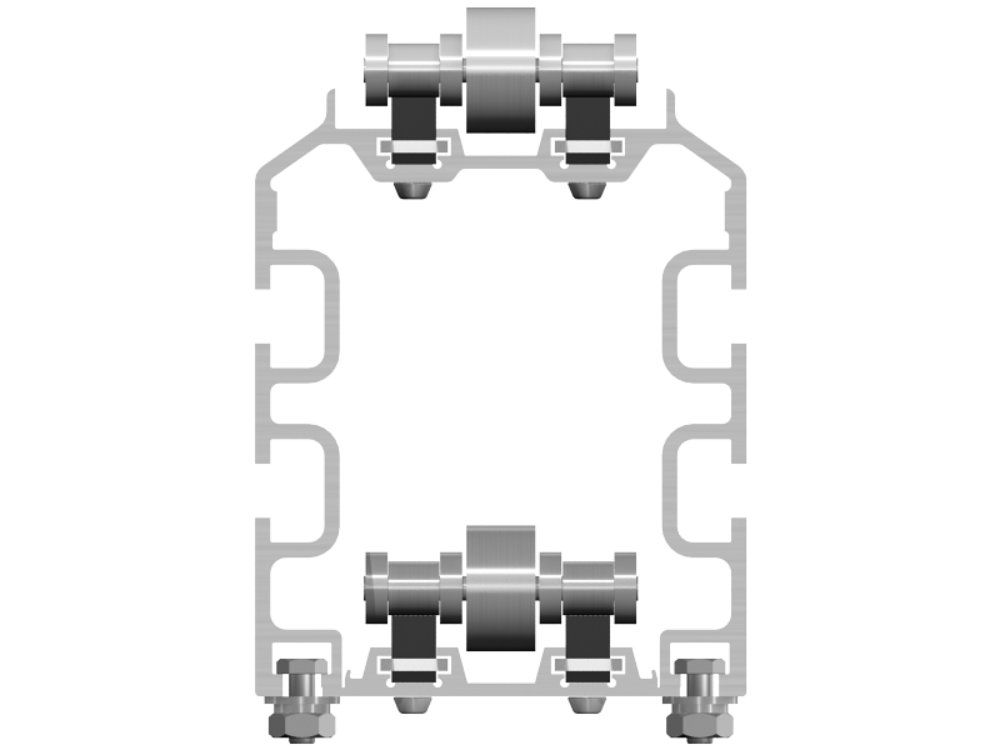

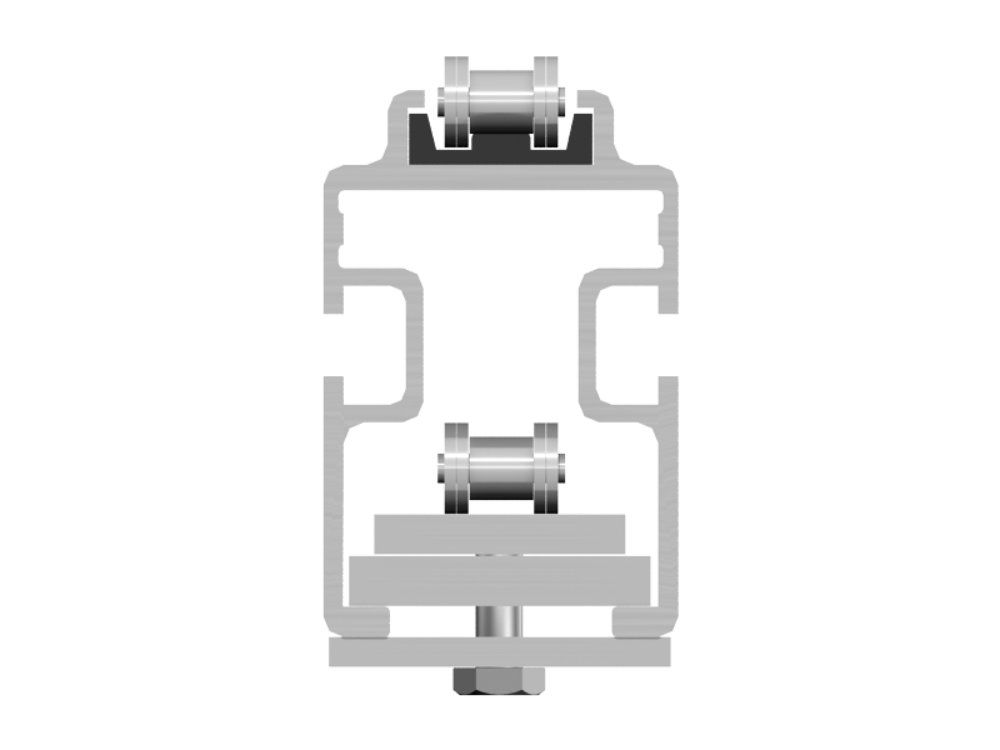

Chain models Simplex 19.05, Duplex 15.8, Triplex 19.05, Accumulation.
Surface treatment Long members are in Aluminum, feet’s are painted or galvanized
Options Walkable platforms, side guides, adjustable sensor supports, automation

Robust, our chain conveyors operate under the most severe conditions from -40°C to 120°C. They are particularly suitable for logistics of wood pallets, and skids in the automotive, truck and paint industries.

You need to equip yourself? Contact us to talk about your project together.
