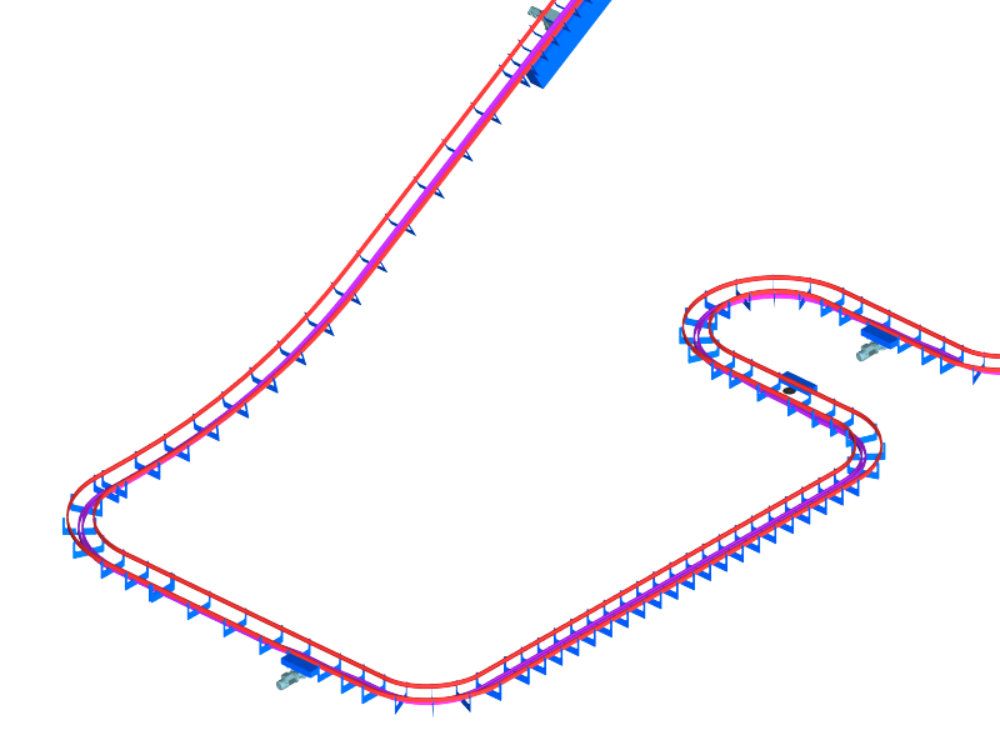

Inverted conveyors are part of a new generation conveyors that avoid costly steelworks. Ideal for plastic parts painting, our inverted conveyor is a modular solution for handling isolated or bound loads in form a train.

In the case of a lubricated chain drive, your loads being over the conveyor, they are protected from any deposits of grease or dust. In the case of a friction drive, lubrication is even not necessary, reducing maintenance.

Technical characteristics

Modular and flexible, they make it possible to meet all the implementation constraints. The characteristics are as follows:

Loop On request
Minimum horizontal radius 800 mm
Minimum vertical radius 6000 mm
Payload From 20 kg to 100 kg
Temperature From -30°C to 150°C
Speed From 0.3 to 12 m/min

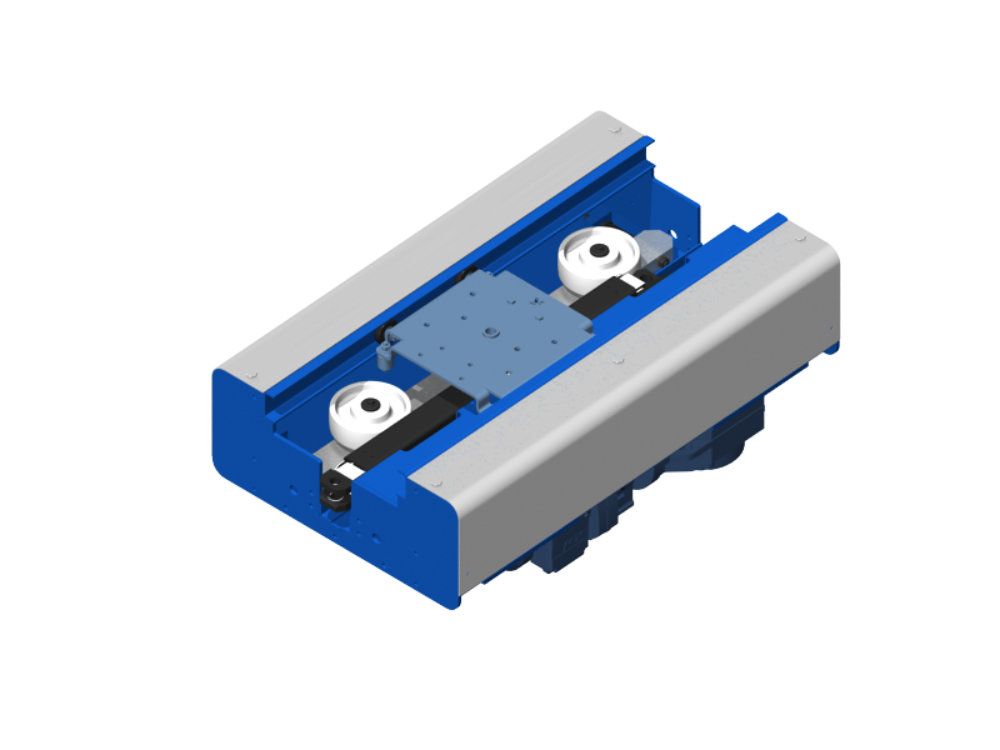

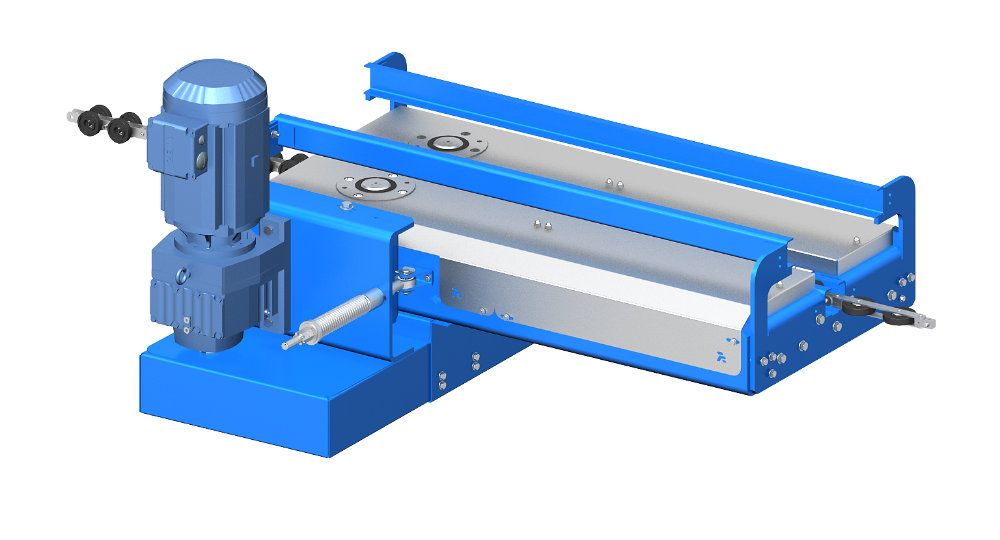

Drive By chain or friction
Surface treatment Painted or galvanized

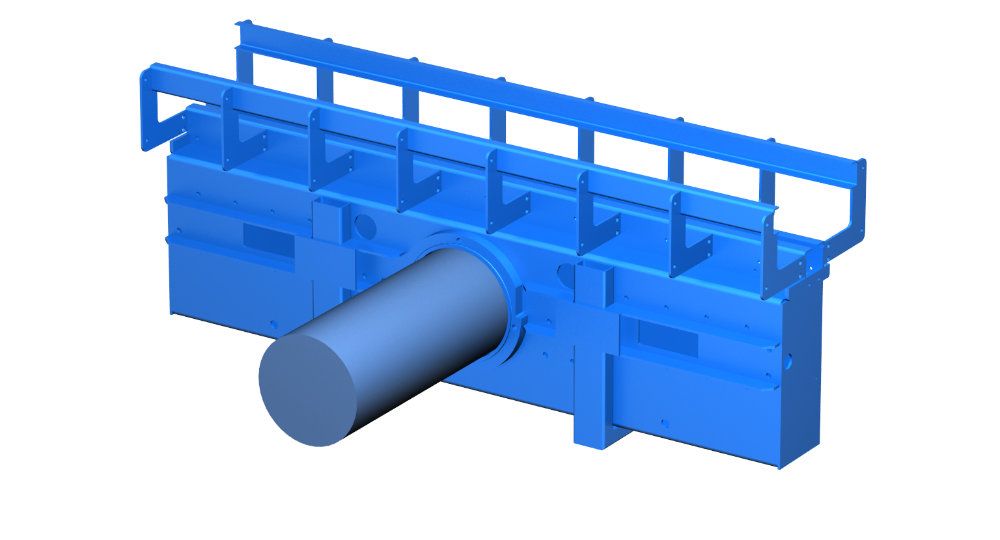

Options Expansion joint, switches, automation, Load rotation units, etc.

Robust and simple, our inverted floor conveyor systems respond to the problems of paint shop lines.

You have a specific need for your painting application? Contact us to talk about your project together.
