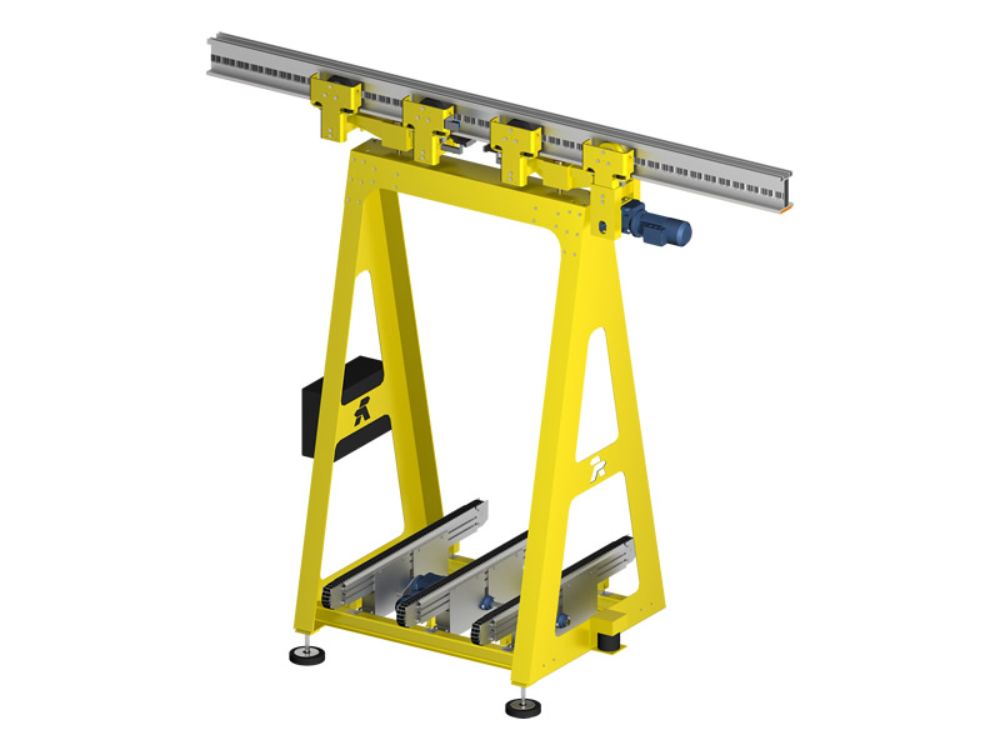

Our transport units are specially designed to transport wooden pallets and all types of flat bottom containers. With a great positioning accuracy, they enable fast speeds and high accelerations, reaching challenging cycle time. The onboard conveyor is customizable as well as the characteristics of the transport units.
With an adaptive design, our transport units are a recognized standard, and their characteristics depend on each project. It is possible to define the following elements:
|Payload per pallet||1200 kg maximum|

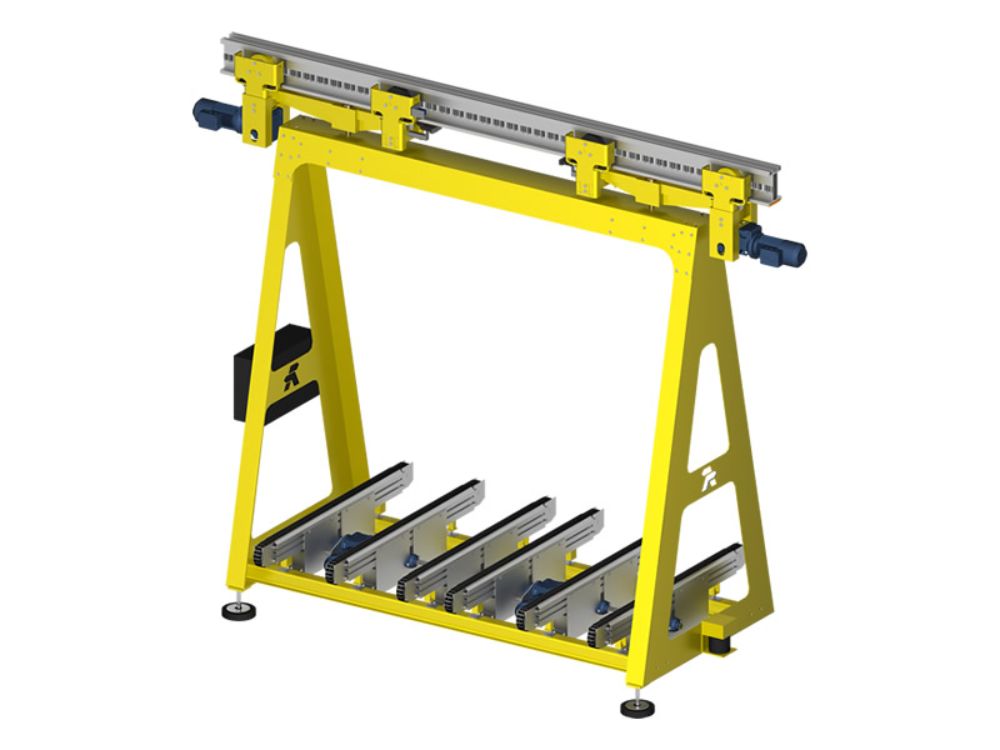

|Quantity of pallet per transport unit||1 or 2|
|Translation speed||Up to 120 m/min in the straight lines, 40 m/min in the curves and 30 m/min in the switches|
|On board conveyor speed||Up to 30 m/min|
|Stop accuracy||+/- 1 mm|
|Surface treatment||Painted or galvanized|
|Options||Stoppers, floor guiding, safety radar, adjustable sensor holders, automation|
Our EMS transport units are robust and operate under the most severe conditions. They are suitable for all overhead and inter-building logistics.
You want to equip yourself? Contact us to talk about your project together.
